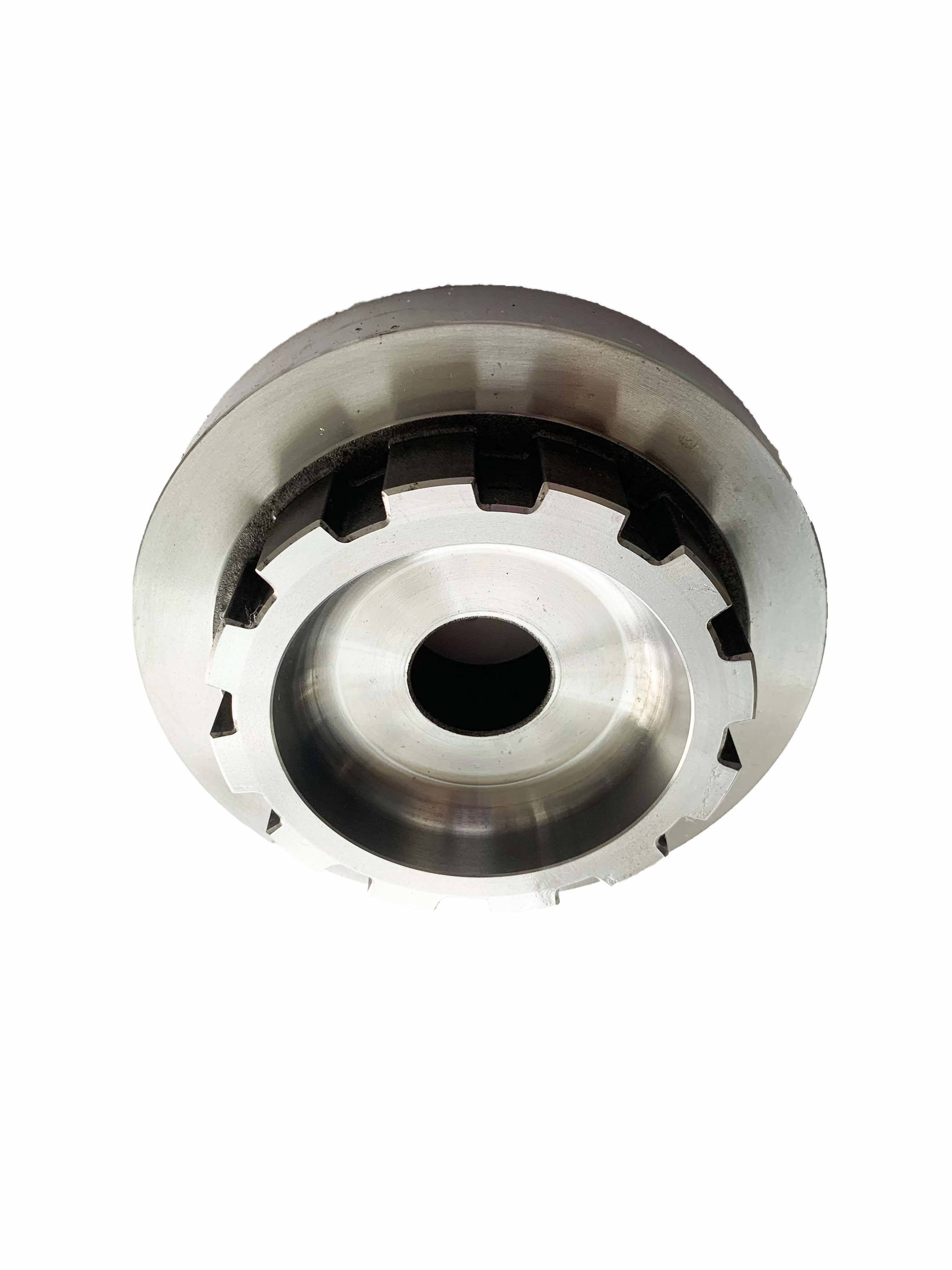

The gear surface hardness is ≤230HB and tooth width of 24.3,This product is the core part of AT transmission, which is used to change the speed and torque from the engine. It can fix or shift the transmission ratio of output shaft and input shaft, also known as gearbox.
The principle of:
Mechanical transmission mainly applies the principle of speed reduction of gear transmission. Simply put, there are multiple sets of gear pairs with different transmission ratios in the gearbox, and the shifting behavior of the car when driving is to make the different gear pairs in the gearbox work through the control mechanism. For example, at low speed, let the gear pair with large transmission ratio work, and at high speed, let the gear pair with small transmission ratio work.
Product specification:
| number of teeth | 16 |
| tooth depth | 5.34 |
| tooth width | 24.3 |
| weight | 4.66(rough turning state) |
| material | ZF7B |
| gear surface hardness | ≤230HB |
| application | AT transmission components |
| product description: | for power transmission purposes and parking. |
| materials | transmission structural steel |
| processing technic | 锻造+机加工
forging+machine work |
| fabricating machinery | mechanical press+CNC Lathe+machining center |
| checkout equipment | Klingberg Gear Btesting Center+Zeiss CMM+Mitoyo contourgraph |
Related products:
| automatic transmission components |
| auto transmission parts |
| idle gear |
| transmission gear |
| idler gear |
| spur gear transmission |
| transmission gear parts |
| straight gear transmission |
| output shaft gear |
| gear forging process |
| gear tooth width |
| alloy steel gear |
| gear drive engine |
FAQ:
Q: Can you send me a sample?
A: Yes, we can send you the sample to check the quality, but you need to pay all the cost of the sample.
Q: How to get the best price?
A: You can consult our commercial department for pricing.
Q:What are your packing terms?
A: Generally speaking, we will pack properly according to your requirements.
Q:What are your terms of payment?
A:generally speaking, telegraphic transfer 30% serves as deposit, 70% is before deliver, but specific circumstance, want to seek advice from our business branch, according to different actual situation, differ somewhat.
